Bearing Bar (Width x Thickness)：25x3、 25x4、 25x5、 30x3、 30x4、 30x5、 32x5、 40x5、 50x5、65x5、 75x6、75x10…..100 x10mm etc
Bearing Bar Pitch：15、 20、 25、 30、 40、 60、 80mm etc.
Twisted Cross Bar Pitch：50、 60、 80、 100、 120mm、 2'' & 4'' etc

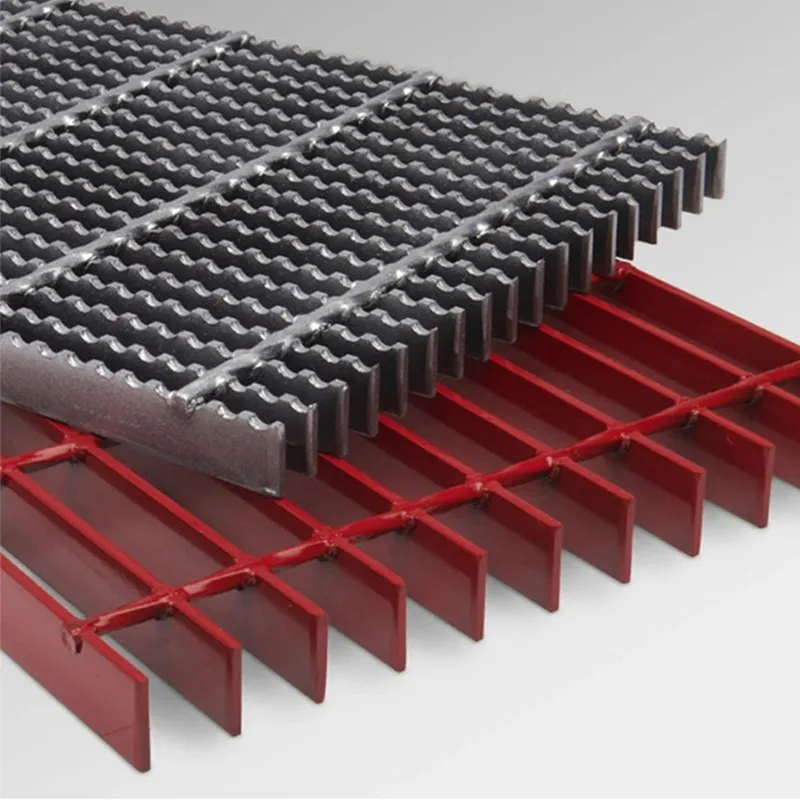

Grating Style：Plain / Smooth、 Serrated / Teeth、 I bar、 Serrated I bar
FEATURES
PICTURE DISPLAY
SPECIFICATION
Related Products
FEATURES
Unmatched Strength & Safety
Made from Q235 carbon steel or stainless steel, our gratings withstand extreme loads, impacts, and corrosion—ensuring long-term safety for mechanical platforms, walkways, and high-traffic zones.
Slip-Resistant & Ventilated Design
Anti-slip serrated surfaces prevent accidents, while open structures allow airflow, drainage, and debris fall-through—ideal for wet environments or harsh industrial settings.
Quick Installation & Low Maintenance
Pre-cut panels and modular designs reduce assembly time and labor costs. Resistant to rust and wear, minimizing downtime for repairs or replacements.
Custom Sizes & Configurations
Tailor grating height, mesh spacing, and surface treatments (galvanized, painted) to meet specific load requirements or regional safety standards (e.g., OSHA, ISO).
Cost-Effective Versatility
From stair treads to truck docks, our steel gratings optimize space efficiency and durability across factories, warehouses, and infrastructure projects—maximizing ROI.
PICTURE DISPLAY
<
SPECIFICATION
| Remarks: Special Material, High Zinc Coating and New Style can be Customized. | |
| Material Standard |
ASTM A36, A1011,A569,Q235,$275JR,Stainless steel 304/316Mild steel & Low carbon steel, etc |
| Bearing Bar (Width xThickness) |
25x3,25x4,25x4.5,25x5,30x3,30x4,30x4.5,30x5,32x5,40x5,50x5,65x5,75x675x10.....100 x10mm etc; Ibar: 25x5x3,30x5x3.32x5x3,40x5x3 etcUs standard: 1"x3/16",1 1/4"x3/16",1 1/2"x3/16",1"x1/4"1 1/4"x1/4",1 1/2"x1/4"1“x1/8”,1 1/4"x1/8".1 1/2"x1/8" etc |
| Bearing Bar Pitch | 12.5,15,20,23.85,25,30,30.16,30.3,32.5,343, 35,381, 40,41.25,60, 80mm etc. US standard:19-w-4,15-w-4,11-w-4,19-w-2.15-w-2 etc. |
| Twisted Cross Bar Pitch |
38.1,50,60,76,80,100,101.6,120mm, 2"& 4" etc |
| Surface Treatment |
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers requirement. |
| Grating style | Plain/Smooth,Serrated /Teeth,l bar, Serrated l bar |
| Packing |
(1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel gridfor high strength; (3)Steel Pallet: Traditional export packing |
| Payment Term | T/T,L/C, Western Union, Credit Card, Alibaba Trade Assurance |
| Product Name: Metal Serrated Steel Grid Grating To Construction Building Material | |
